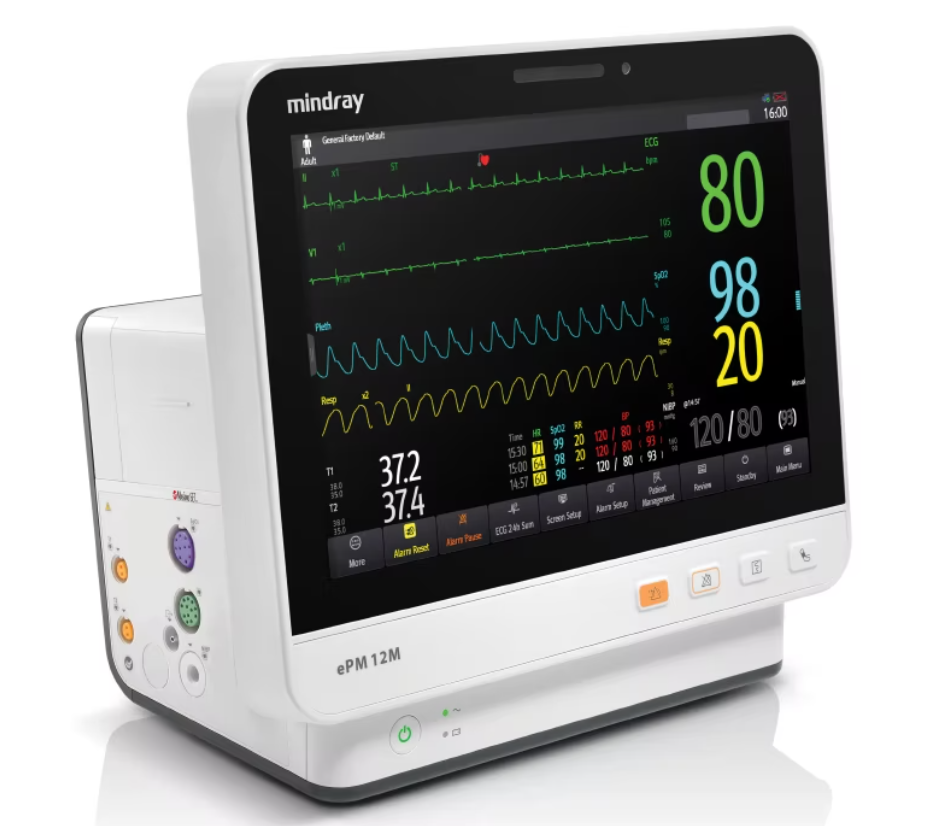

Mindray ePM 12M Patient Monitor

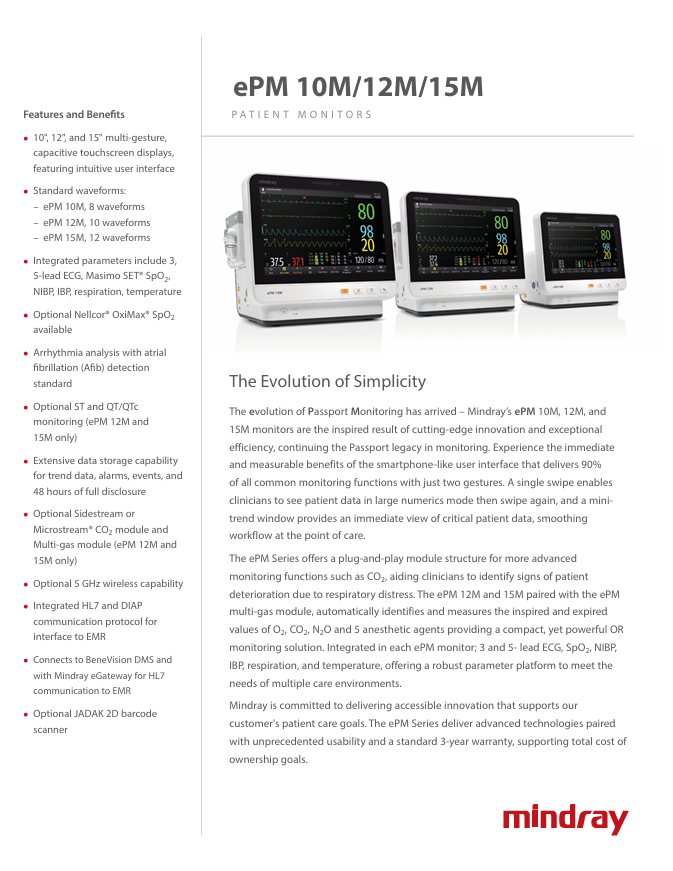

DESCRIPTION:

• The Mindray ePM 12M is a patient monitor with a 12" multi-gesture, capacitive touchscreen display featuring an intuitive user interface. It offers integrated parameters including 3/5-lead ECG, arrhythmia analysis, Masimo SET or Nellcor SpO2 , NiBP, temperature, and respiration.

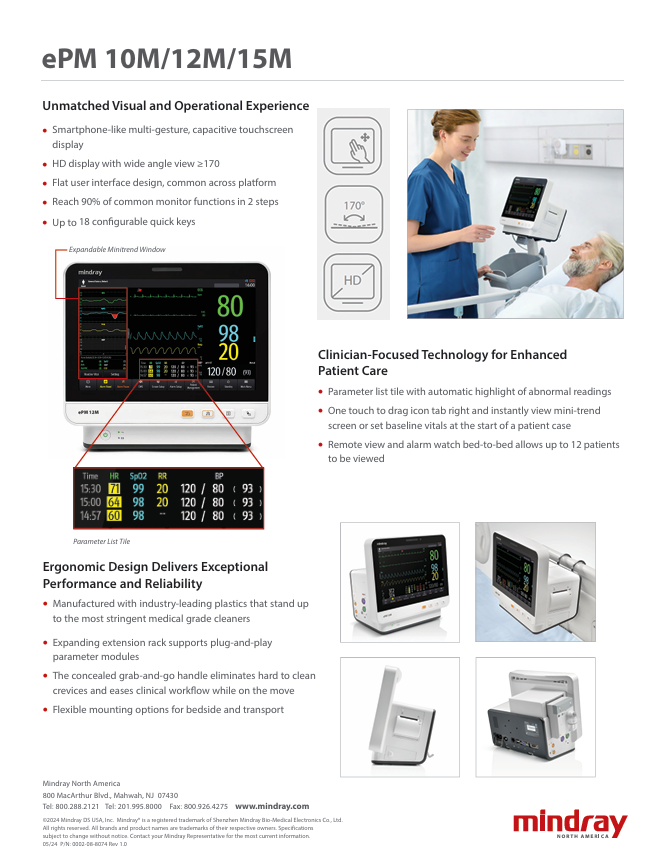

FEATURES:

• 12" multi-gesture, capacitive touchscreen display
• 10 waveforms
• Arrhythmia analysis with atrial fibrillation (Afib) detection
• Extensive data storage for trend data, alarms, events, and 48 hours of full disclosure
• Optional ST/QT/QTc monitoring
• Available wireless monitoring
• Integrated HL7 and DIAP communication protocol for EMR interface
• Optional JADAK 2D barcode scanner

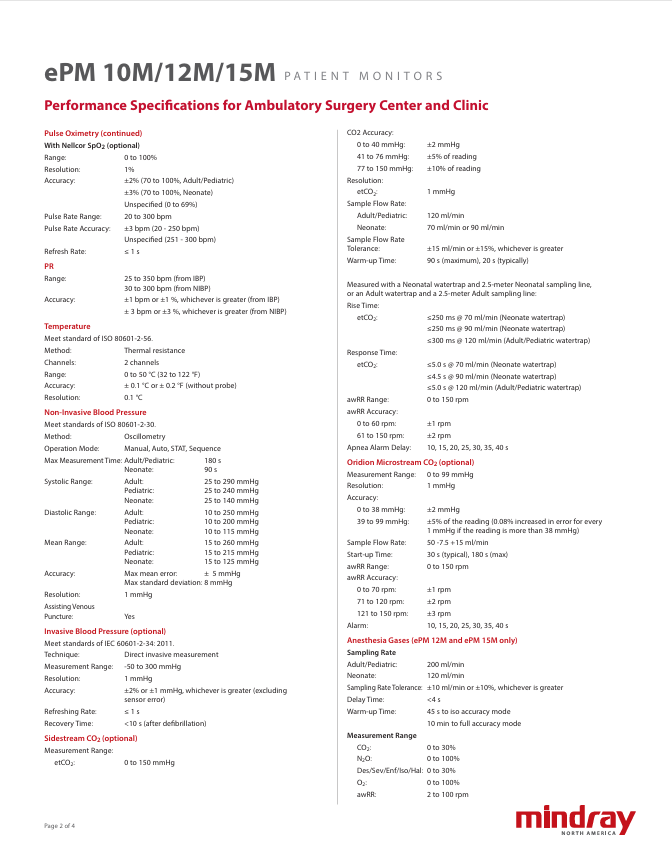

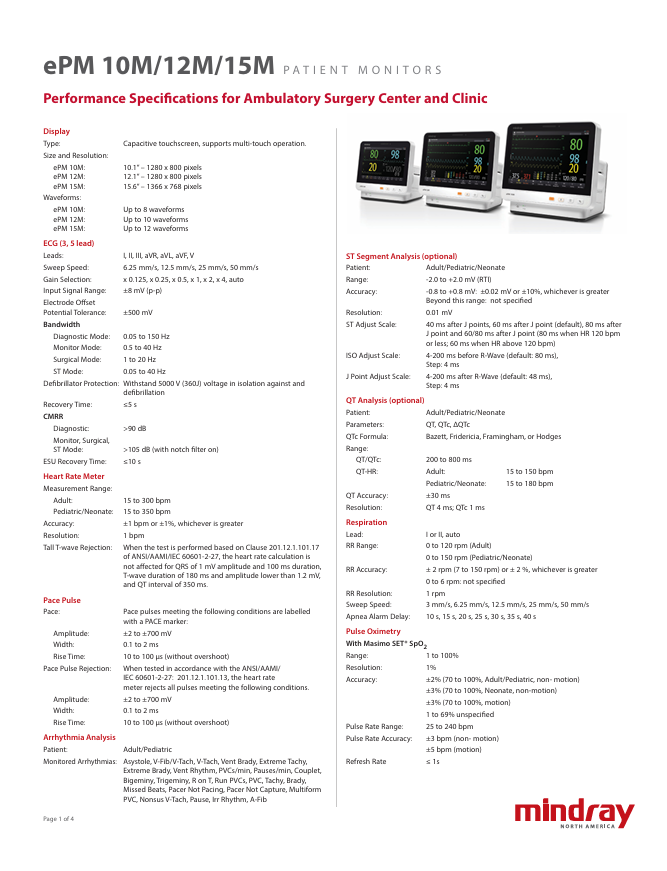

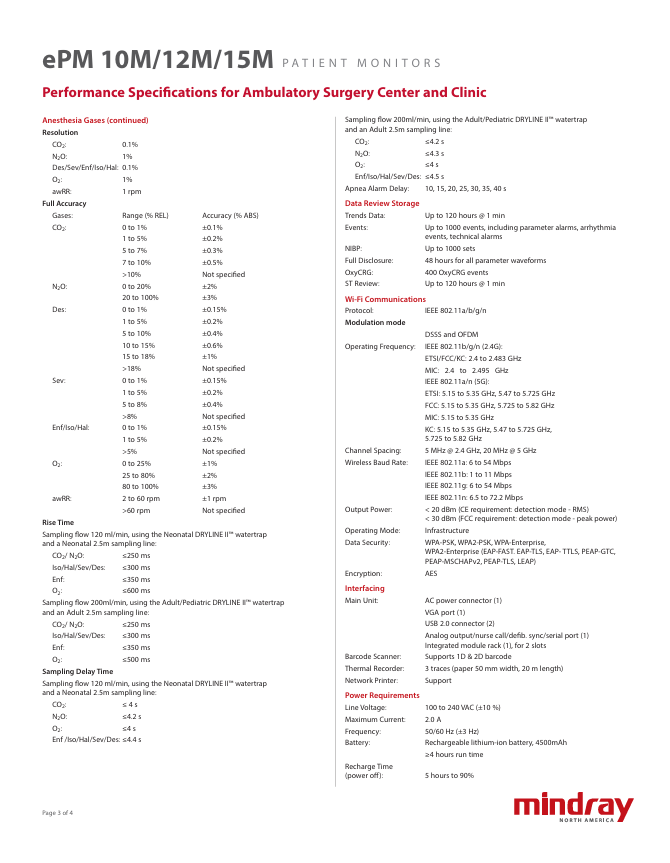

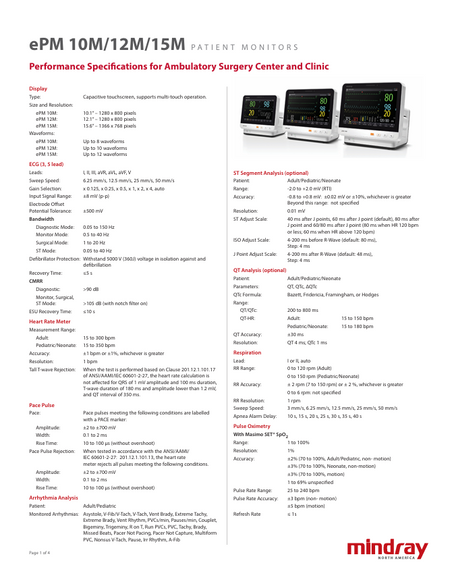

SPECIFICATIONS:

• Manufacturer: Mindray
• Part Number (OEM): 9203E-PA000XX
• Category: Patient Monitors
• Condition: New / Refurbished
• Warranty: 3 Years
• Display:
  • 12.1-inch capacitive touchscreen display
  • Resolution: 1280 x 800 pixels
  • Supports multi-touch operation
  • Up to 10 waveform channels

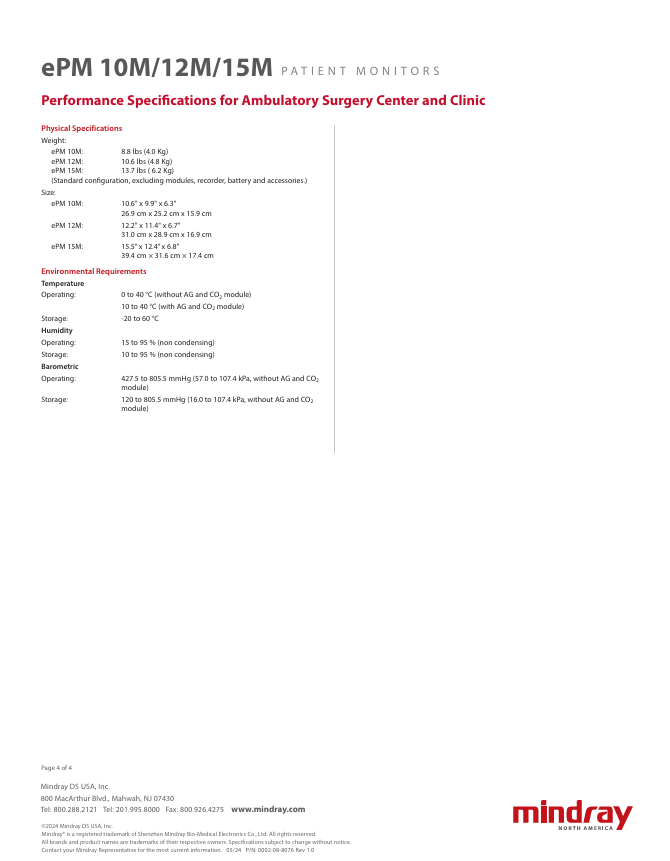

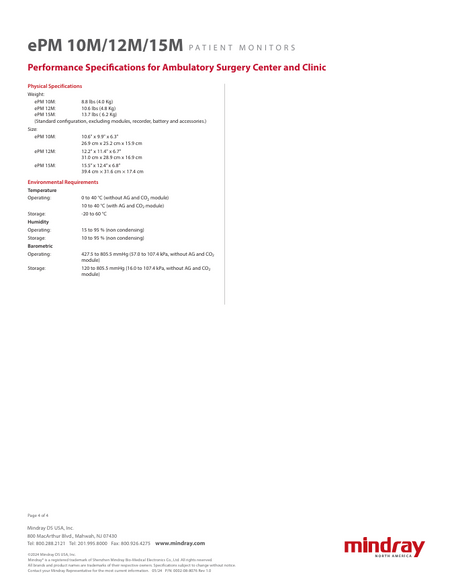

• Physical Specifications:
  • Size: 12.2" x 11.4" x 6.7" (31.0 cm x 28.9 cm x 16.9 cm)
  • Weight: 10.6 lbs (4.8 Kg)
• Parameters:
  • Integrated 3/5-lead ECG with arrhythmia analysis and atrial fibrillation detection
  • Masimo SET SpO2
  • NiBP (Non-Invasive Blood Pressure)
  • Respiration
  • Temperature
• Additional Features:
  • Optional ST/QT/QTc monitoring
  • Data storage for trend data, alarms, events, and 48 hours of full disclosure
  • Optional Sidestream or Microstream CO2 module
  • Optional Multi-gas module
• Power:
  • AC power: 100-240 VAC, 50/60 Hz
  • Battery: Rechargeable lithium-ion battery, 2600mAh/4500mAh/5600mAh options
  • Battery life: >2 hours (2600mAh), >4 hours (4500mAh), >4.5 hours (5600mAh x1), >9 hours (5600mAh x2)
• Environmental:
  • Operating temperature: 0 to 40°C (without AG), 10 to 40°C (with AG)
  • Operating humidity: 15 to 95% (non-condensing)
  • Operating barometric pressure: 427.5 to 805.5 mmHg (57.0 to 107.4 kPa)

COMPATIBILITY:

• Optional Sidestream or Microstream CO2 module
• Optional Multi-gas module for measuring O2, CO2, N2O, and 5 anesthetic agents
• Integrated HL7 and DIAP communication protocol for EMR interface
• Supports wireless monitoring
• Compatible with optional JADAK 2D barcode scanner
• Supports network printing
• Supports 1D & 2D barcode scanning The monitor also offers plug-and-play module structure for advanced monitoring functions, allowing for easy expansion of capabilities as needed.

CONFIGURATIONS: (Price Varies)

• 9203E-PA00013:
  • ePM 12M
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • Masimo SpO2
  • NiBP
  • Temperature
  • Respiration
• 9203E-PA00021:
  • ePM 12M
  • 2.4/5 GHz Wireless
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • Masimo SpO2
  • NiBP
  • Temperature
  • Respiration

• 9203E-PA00095:
  • ePM 12M
  • ST/QT/QTc
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • Masimo SpO2
  • NiBP
  • Temperature
  • Respiration

• 9203E-PA00015:
  • ePM 12M
  • 3/5 Lead ECG
  • Array analysis
  • ST/QT/QTc
  • Masimo SpO2
  • NiBP
  • Dual IBP
  • Temperature
  • Respiration
• 9203E-PA00023:
  • ePM 12M
  • 2.4/5 GHz Wireless
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • ST/QT/QTc
  • Masimo SpO2
  • NiBP
  • Dual IBP
  • Temperature
  • Respiration
• 9203E-PA00018:
  • ePM 12M
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • Nellcor SpO2
  • NiBP
  • Temperature
  • Respiration
• 9203E-PA00036:
  • ePM 12M
  • 2.4/5 GHz Wireless
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • Nellcor SpO2
  • NiBP
  • Temperature
  • Respiration
• 9203E-PA00096:
  • ePM 12M
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • Nellcor SpO2
  • ST/QT/QTc
  • NiBP
  • Temperature
  • Respiration
• 9203E-PA00030:
  • ePM 12M
  • 3/5 Lead ECG
  • Array Analysis
  • ST/QT/QTc
  • Nellcor SpO2
  • NiBP
  • Dual IBP
  • Temperature
  • Respiration
• 9203E-PA00038:
  • ePM 12M
  • 2.4/5 GHz Wireless
  • 3/5 Lead ECG
  • Arrhythmia Analysis
  • ST/QT/QTc
  • Nellcor SpO2
  • NiBP
  • Dual IBP
  • Temperature
  • Respiration
